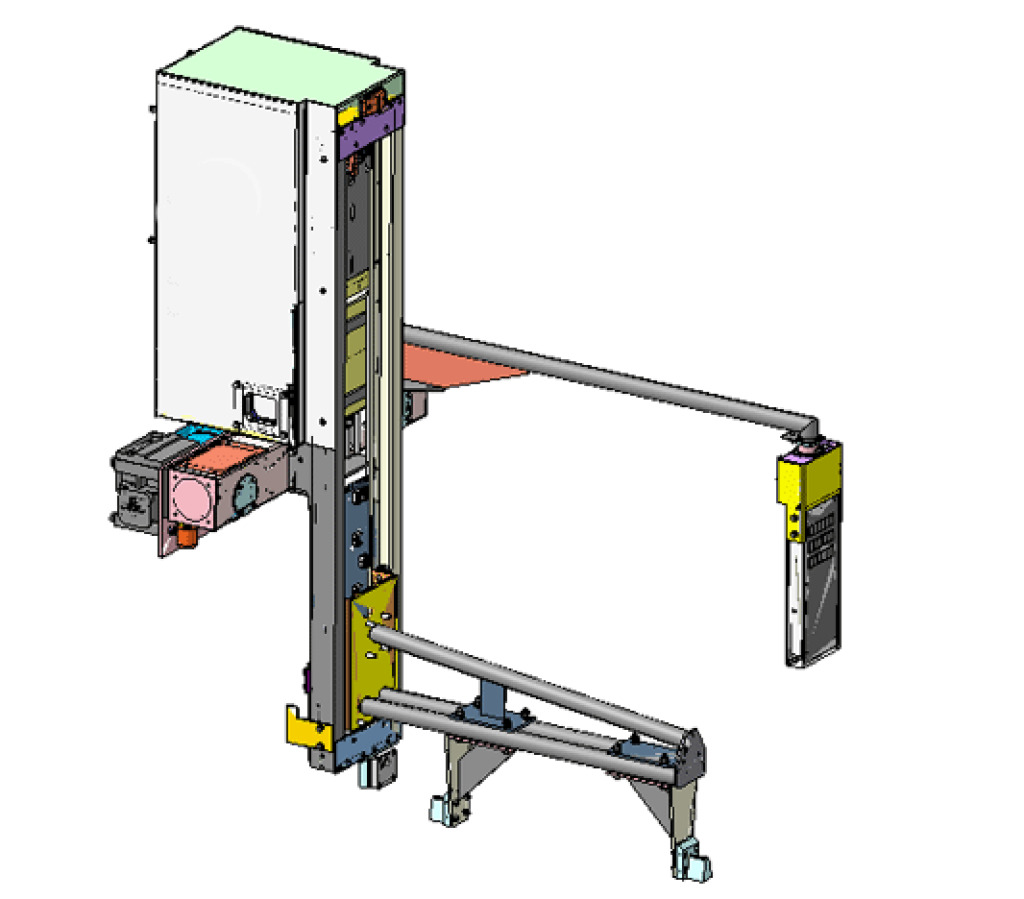

Transport robot with a capacity up to 50 kg
Robotics > Metalloobratoka > Electroplating
Robotics > Metalloobratoka > Electroplating
Transport robot with a capacity up to 50 kg, Console type, designed to complete podvesočnyh electroplating lines.
Transport robot can be used in lines with depth not more than 1100 mm and of a length not exceeding 1300 mm.
specs.
- dimensions:-length-700 mm-width without console and remote manual control rods-430 mm-height 1600 mm.
- own Weight-not more than 150 kg
- load capacity 50 kg
- vertical stroke console-1140 mm.
- vertical movement Speed console-200 mm/sec
- Speed horizontal movement-600 mm/sec
- positioning accuracy-± 5 mm.
- number of concurrent suspensions-up to 7 PC.
- number of programmable technology-up to 15;
- number of programmable washing modes-to 7.
- power supply-0.4 kW
- supply voltage-380 v, 50 Hz, 3 phases.
- Connecting cable 10h1, flat 5.
- Profile navigation paths-smooth rake 40 x 40 (mm)
- transport robot requires adaptation to existing navigation routes or manufacturing of new .
- commissioning are carried out only by specialists of «RobotÈk.
