Universal Jig
Automotive > diagnostic tools > Diagnostic tools and review car controllers
Automotive > diagnostic tools > Diagnostic tools and review car controllers

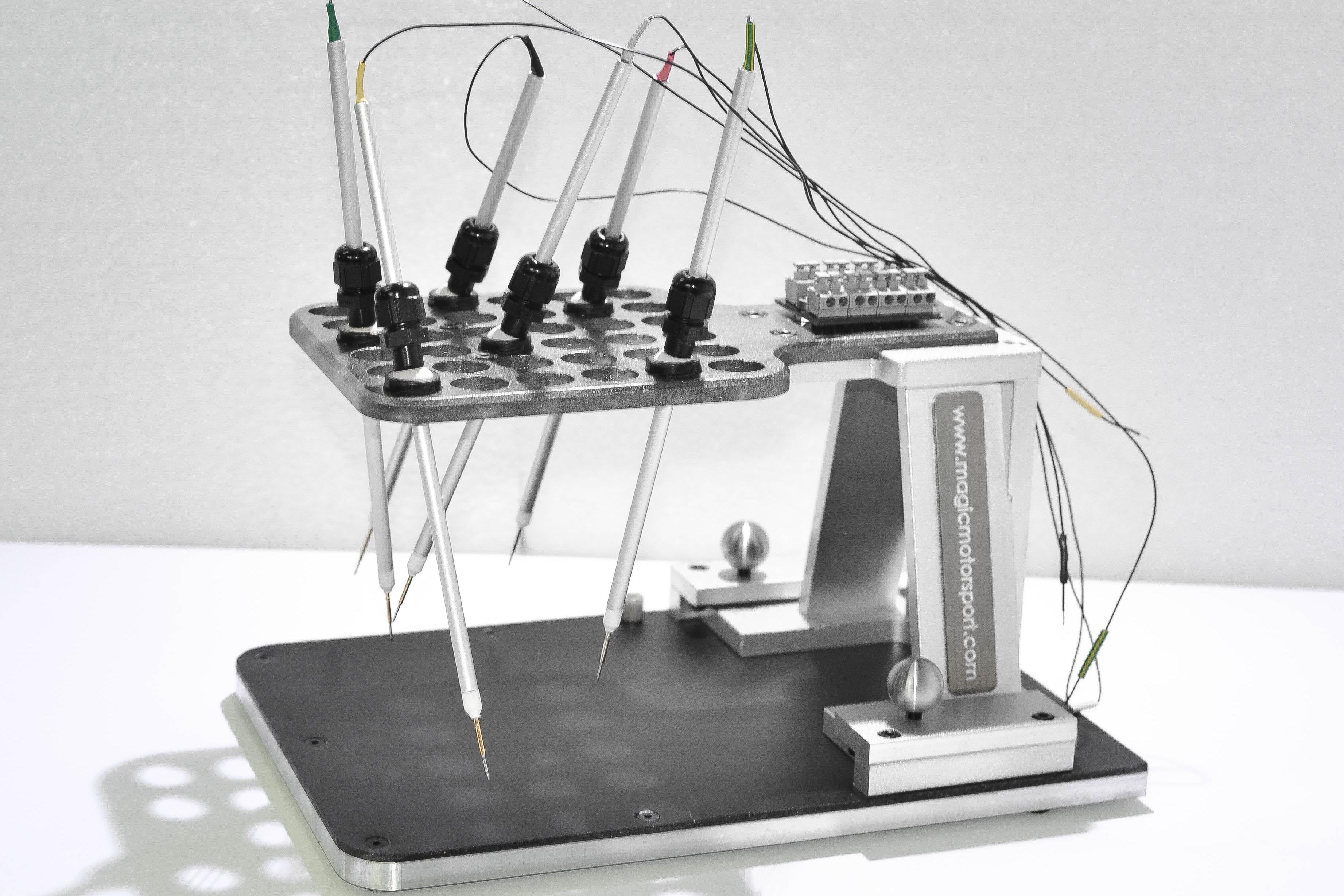

This Template has spherical probes, which you can place at will according to the needs of the connections to make in the control unit. The template does not replace the classical MAGK00011 where wiring errors are highly unlikely thanks to specific adapters for each individual unit.
it is a tool that complements the existing equipment, in particular is very useful to program new controllers who own multiple boot, so do not weld any thread or resistance
PCB. through the support slot with 36 provides maximum contact options to anywhere in the
control unit to be programmed. in the kit are provided 6 contact points, but can be purchased individually for more complex work. Also the work is facilitated by the presence of a led that lights the work area bar.
| Type | Name | Code | Actions |
|---|---|---|---|
|
COMPONENT
|
DIMA UNIVERSALE
|
MAGK00030
|
