ExOne Italy
S.r.l.

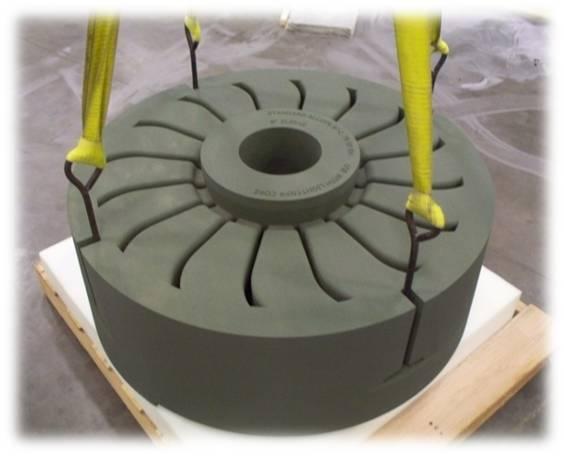

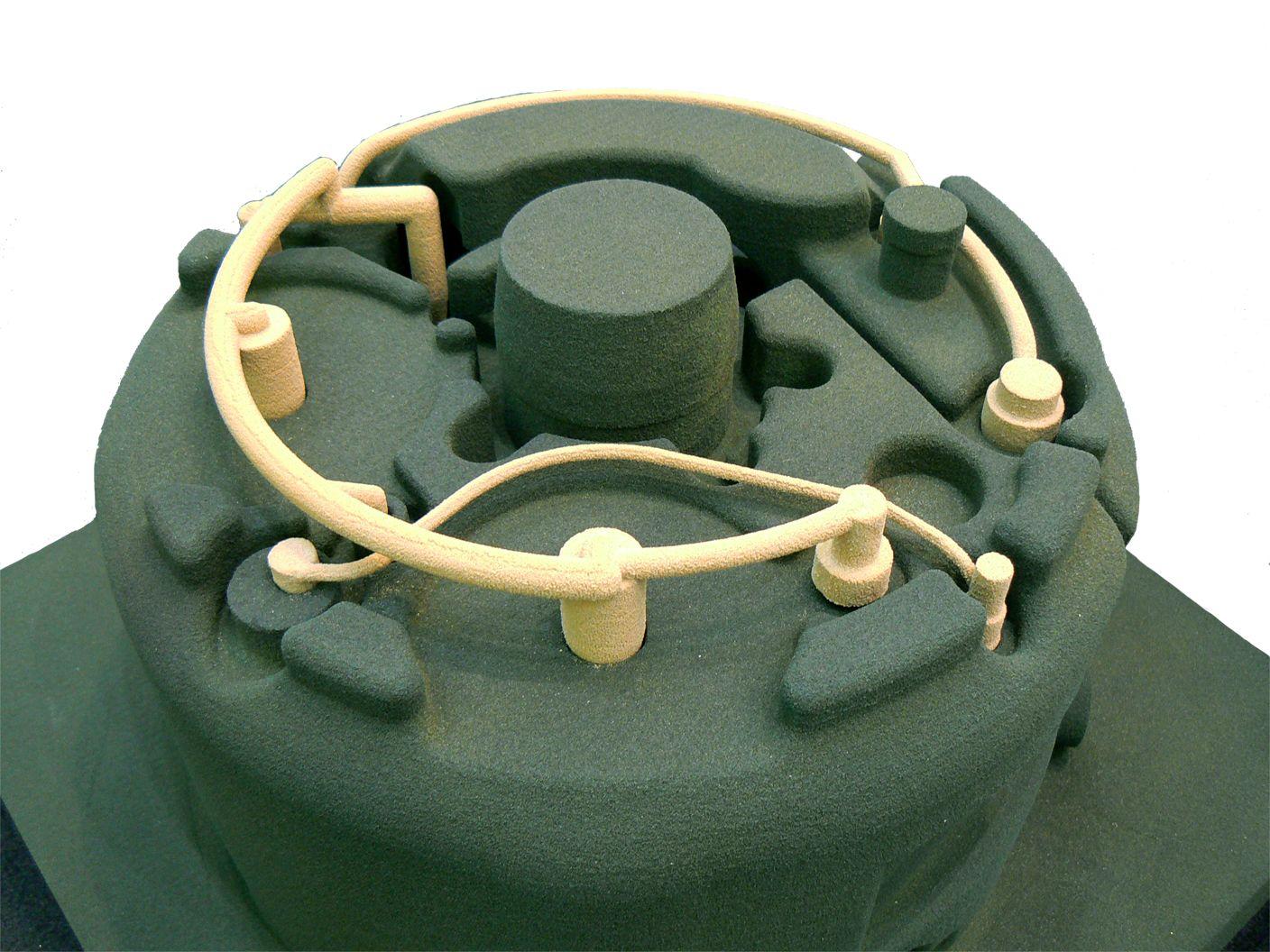

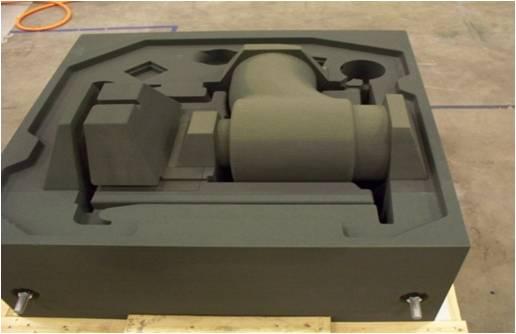

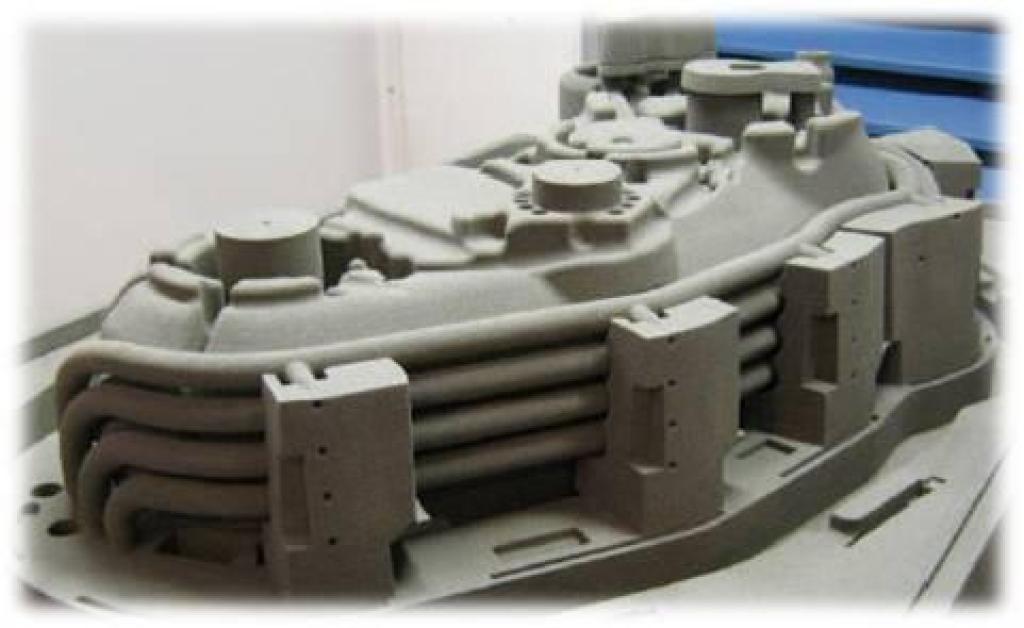

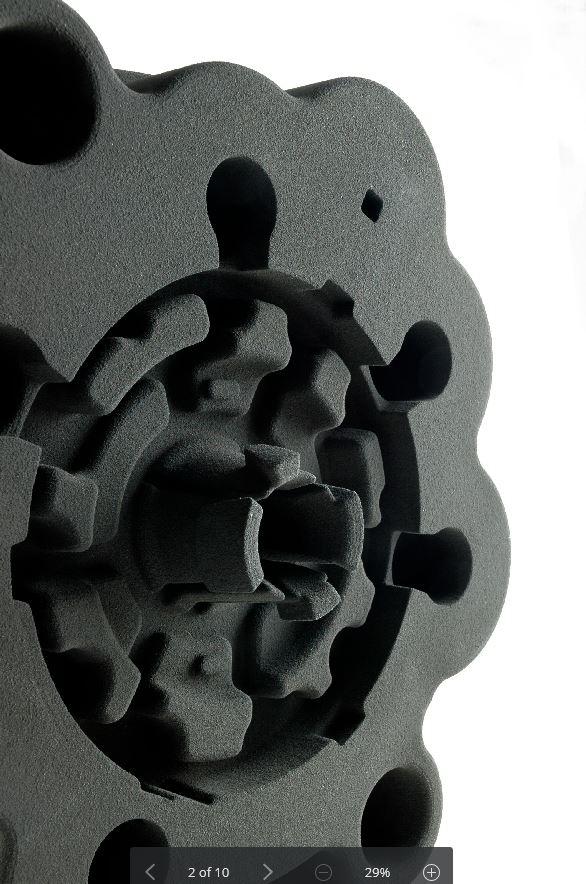

Anime or molds printed in sand with FURANICA binders
Areospace / defense > Aviation components > Aircraft components
Areospace / defense > Aviation components > Aircraft components
3D printing is a productive process that builds a solid object in three dimensional layers, starting with a digital model. 3D-Printing can produce pieces with geometric features that can not be produced by other production processes.
ExOne builds functional 3D objects from the bottom, one layer at a time with robust industrial materials. ExOne's 3D printing system binds selectively, thin layers of fine dust. When the print head passes over the dust bed, the binder is deposited on the dust. The bed of dust is lowered and is covered by another layer of fine powder. With each subsequent step of the print head, each powder granule is bound until the shape of the object is completed.
ExOne builds functional 3D objects from the bottom, one layer at a time with robust industrial materials. ExOne's 3D printing system binds selectively, thin layers of fine dust. When the print head passes over the dust bed, the binder is deposited on the dust. The bed of dust is lowered and is covered by another layer of fine powder. With each subsequent step of the print head, each powder granule is bound until the shape of the object is completed.
This feature is only available for registered users on Industrial Cloud. Register now!
| Parameter name | Parameter values | Unit of measure |
|---|---|---|
|
Coef. dilatazione a 1000°C
|
1, 3
x
x
|
%
x
x
|
|
Composizione chimica
|
SiO2 97
x
x
|
%
x
x
|
|
Densità
|
1, 4
x
x
|
g/cm3
x
x
|
|
Perdita alla calcinazione
|
From 1.6 to 2.2
x
x
|
%
x
x
|
|
Resistenza alla flessione
|
From 190 to 320
x
x
|
N/cm2
x
x
|
|
Tolleranza
|
From -0.3 to 0.3
x
x
|
mm
x
x
|
Anime or foundry forms
stampa 3D, 3D Printing,Stampanti 3D,rapid prototyping,prototipazione rapida,anime in sabbia,sabbia,stampi,motte,anime,furanica
| Type | Name | Code | Actions |
|---|---|---|---|
|
COMPONENT
|
ANIMA CON LEGANTE FURANICA STAMPATO IN 3D
|
00013965
|
