MODY BOX BreakFree
Detection - measurement > Metrology and test equipment > Climate test chambers
Detection - measurement > Metrology and test equipment > Climate test chambers
The structure is modular and comprises vertical modules (walls) and horizontal forms (coverage). The forms used shall provide for the possibility of subsequent disassembly and/or enlargements without destructive operations.
the wall elements are constructed with:
line BreakFree • supporting structure formed by angular and lateral columns of electro-welded steel and painted with integrated base plate, top links and intermediate brackets, stops for reference curtain walls, fixing to the ground using tessellation. Upper connection of perimeter beams and columns made central to section pultruded profile IPE in fiberglass, with higher warping function. Jokes for support of horizontal forms of coverage. The sections of the elements and interconnections are sized according to the load carried. Colour RAL 7001-like finish.
• enclosures continuous blind double steel sheet coated with epoxy powders, with foam insulation. Total thickness 50 mm.
angular/side columns by tightening fixing and sealing. Lower support and attachment for listing at-bent steel reinforced ashore. Internal and external finishing RAL 9002-like grey-white colour.
• laminated Visual room anti-breakage transparent 3 + 3 + 4 + 12 sp.. The glass is mounted on the frame in aluminium sp. 50 mm. Mounting on frame using aluminium profiles and dust seals. Silver anodized finish.
• cosmetic finishing profiles covering all external edges (top and side) steel at-bent
silver.

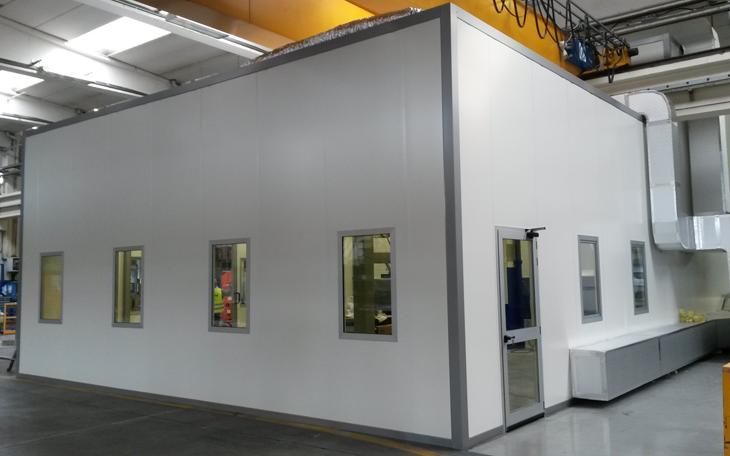

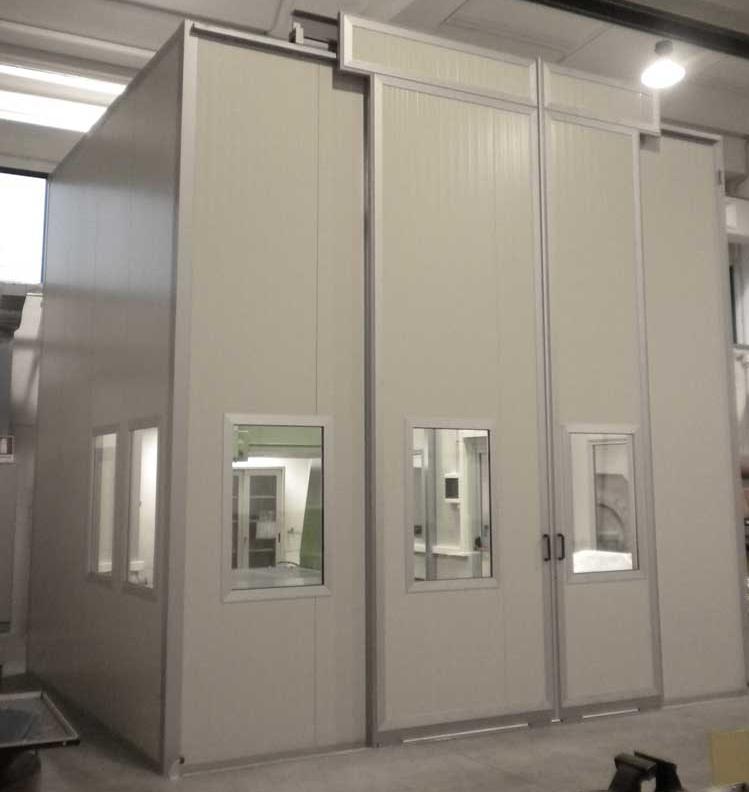

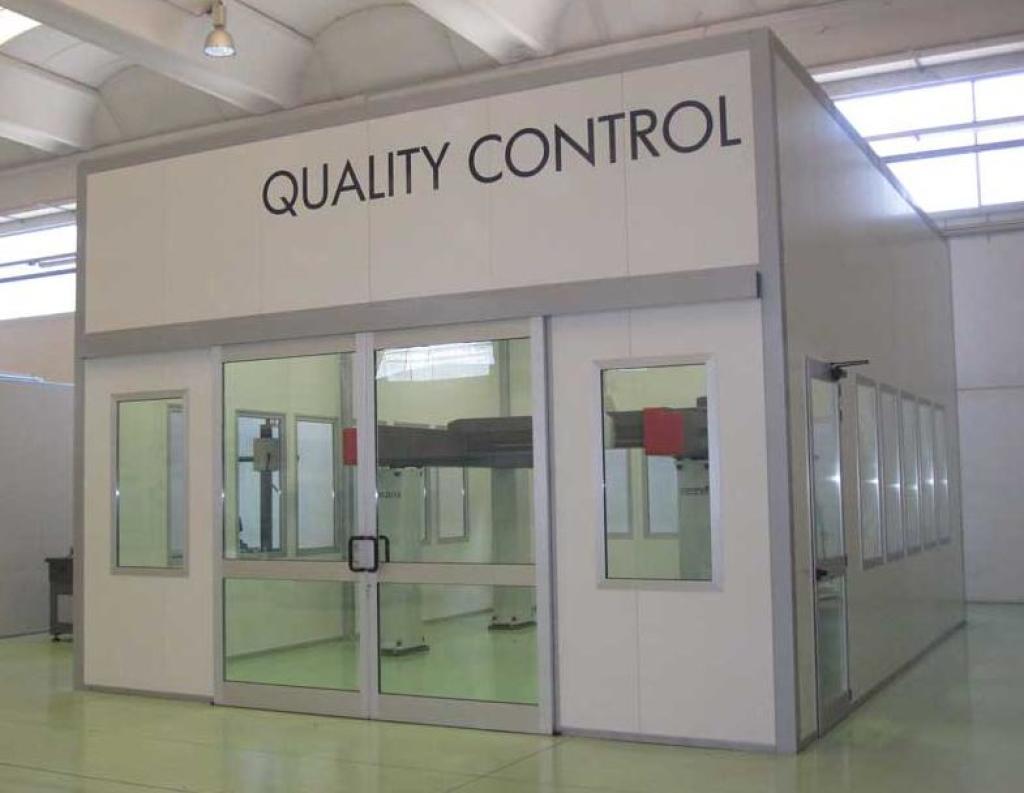

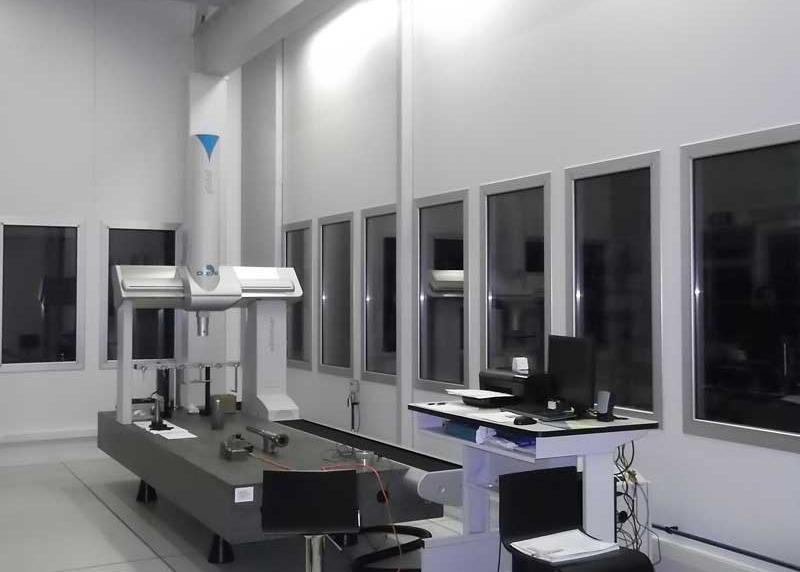

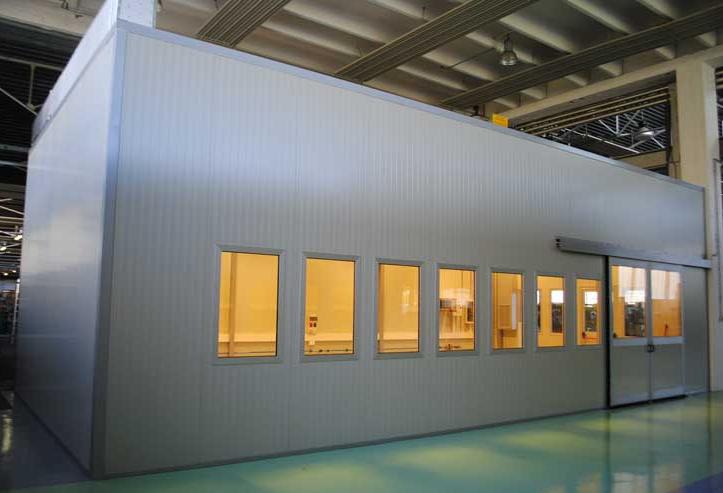

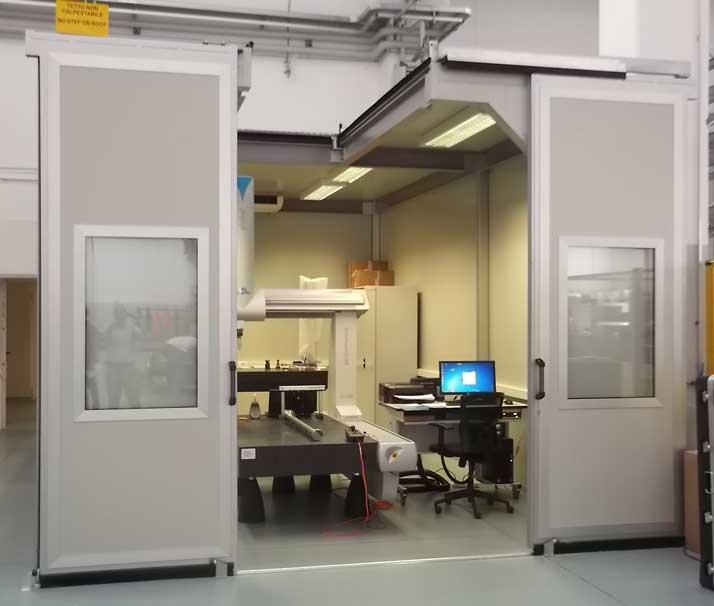

Air conditioned cabins for metrological testing
