Mod.En S.r.l.

Product name:* MODY BOX AluFrame

Category:

Detection - measurement > Metrology and test equipment > Climate test chambers Detection - measurement > Metrology and test equipment > Climate test chambers

Product images

Description

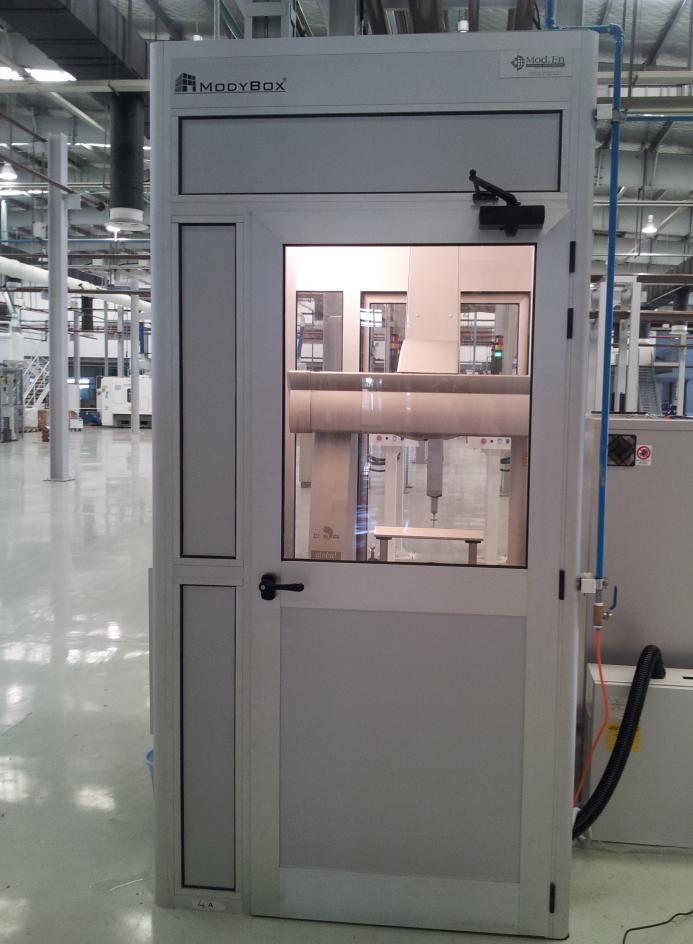

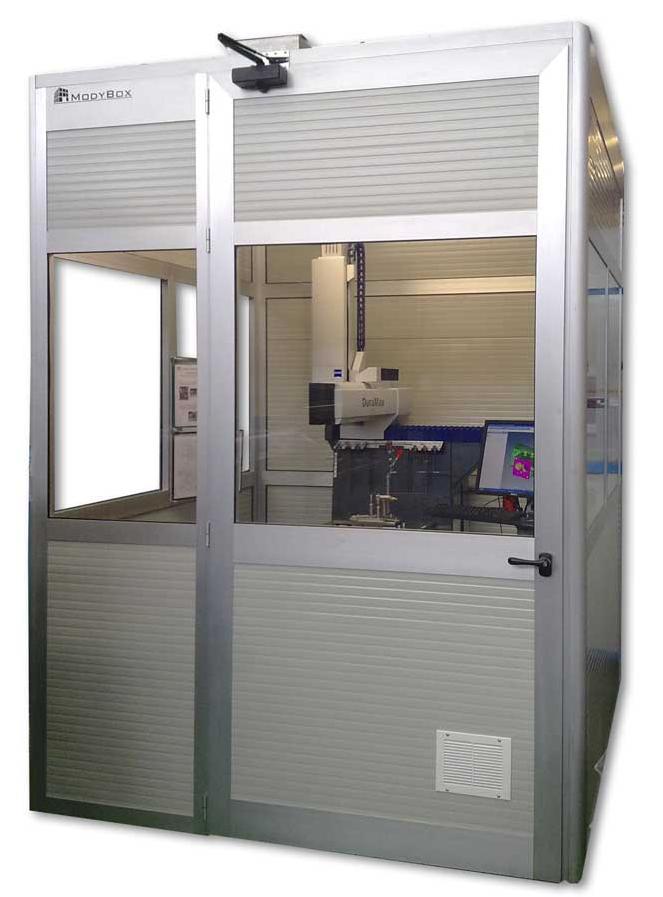

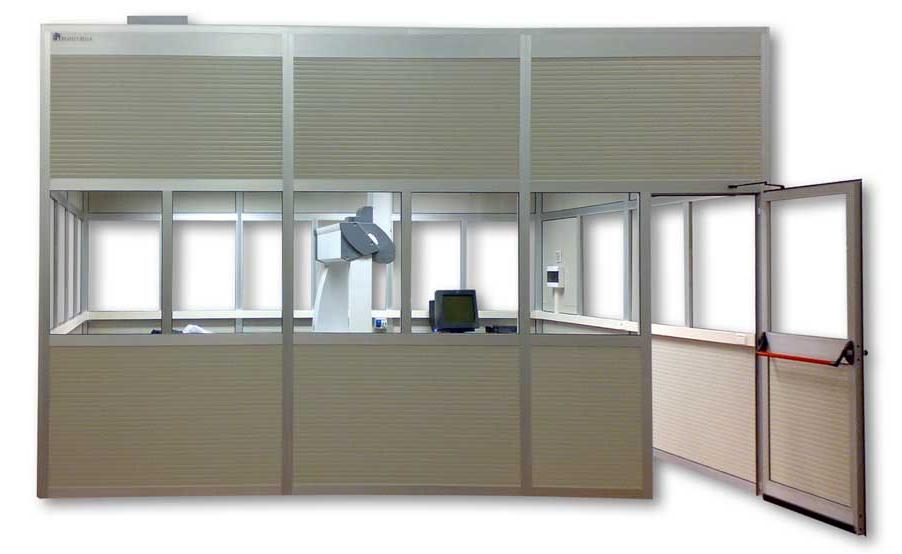

The structure is modular and comprises vertical modules (walls) and horizontal forms (coverage). The forms used shall provide for the possibility of subsequent disassembly and/or enlargements without destructive operations.

Wall forms of line-standing, AluFrame, preassembled and are constructed with:

• bearing Casing in aluminium sections formed by double-column bottom plinth, intermediate and upper cross-strengthened beams, pillars of aluminum with rounded corners, total thickness 50 mm. Aluminum top frame exterior aesthetic with shelf for support and joint cover. Silver anodized finish. Ground fixation using tessellation and sealing.

• enclosures blind in bi-metallic epoxy coated with foam insulation. Mounting on frame using aluminium profiles and dust seals. RAL 9002 grey-white finish-like glazed laminated

• enclosures room anti-breakage 12 + 3 + 3 + transparent SP. 4. Mounting on frame using aluminium profiles and dust seals.

Price

No price provided

Application :

Air conditioned cabins for metrological testing

Attachments

MB.LP.02-2016.ITA Download

* Indicates required field

Close

Related Products View all

Detection - measurement Metrology and test equipment

MODY BOX BreakFree

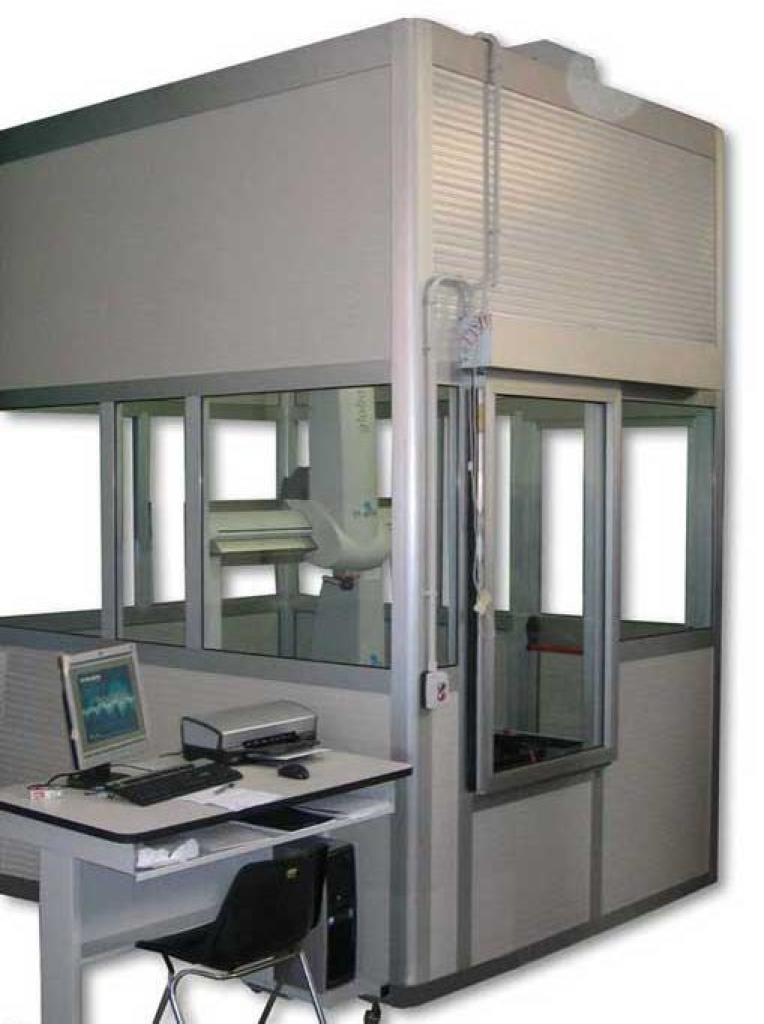

The structure is modular and comprises vertical modules (walls) and horizontal forms (coverage). The forms used shall provide for the possibility of subsequent disassembly and/or enlargements without destructive operations.
